GM 8.875-inch 12-bolt Car Differential Cover.

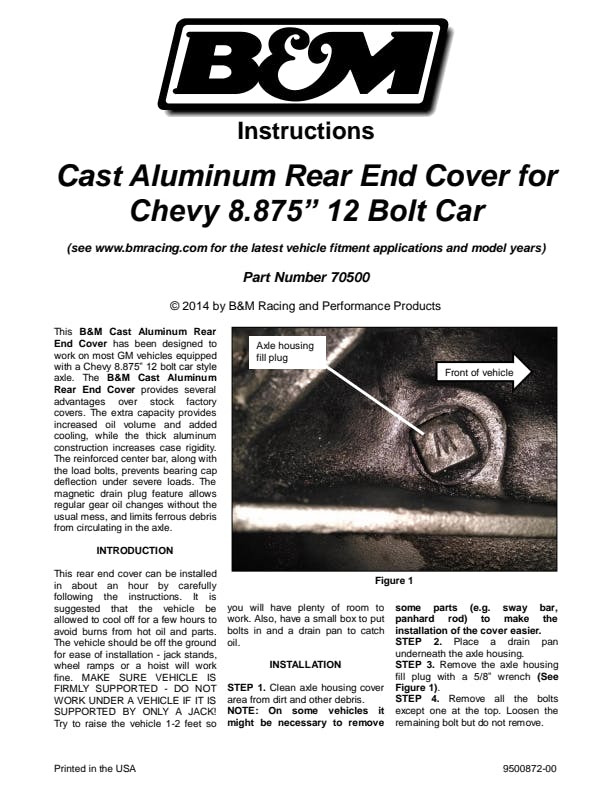

Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, a machined B&M logo and all necessary hardware, and easy-to-follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included
- Additional .5-quart Fluid Capacity
- Over 65 Years of B&M Quality
- Lifetime Limited Warranty
- Machined B&M Logo
- Load Bolts for Additional Support for Bearing Caps
- Magnetic Drain Plug for Easy Servicing
- A356.0-T6 Aluminum Construction
Information:

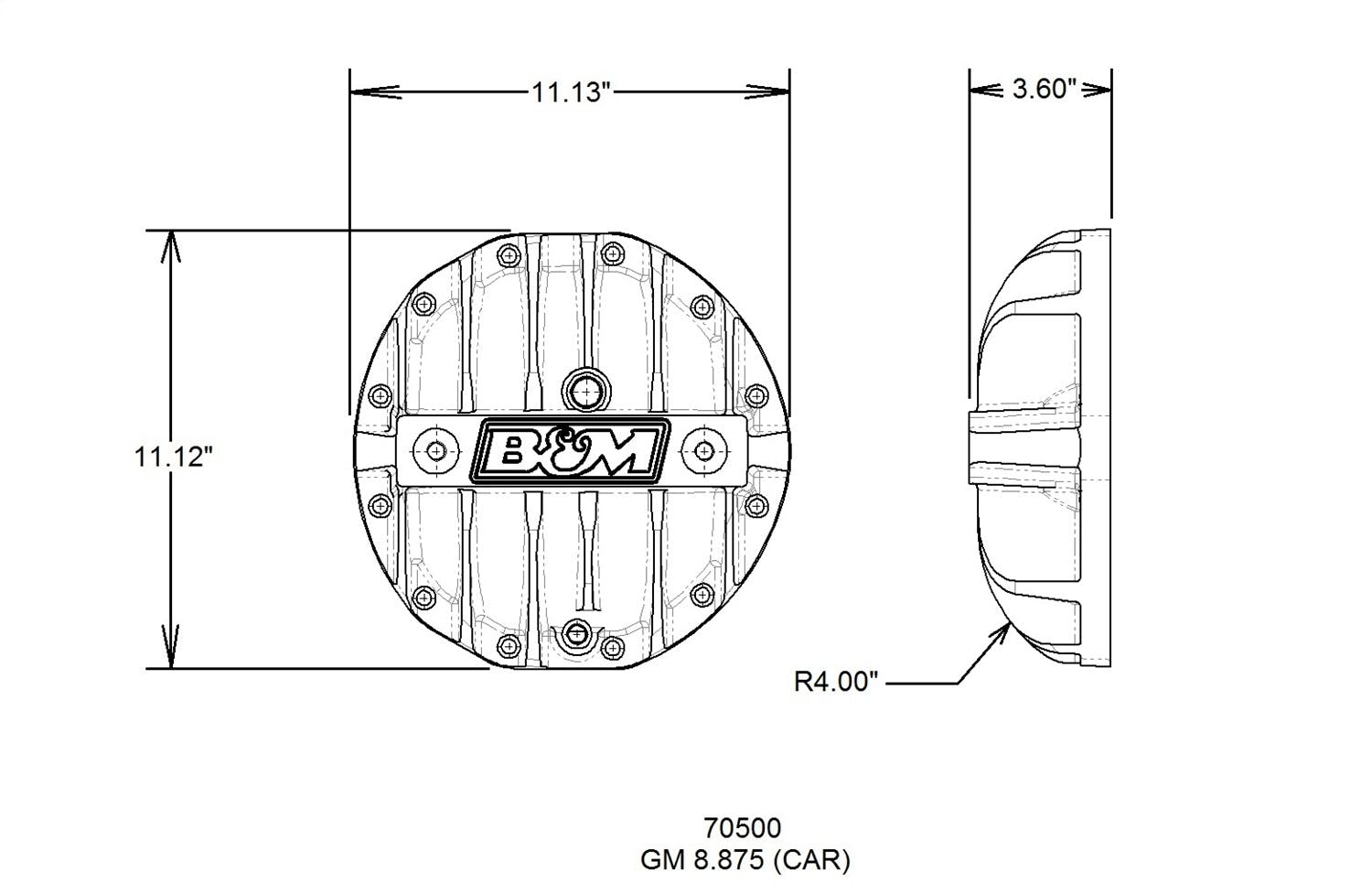

Designed to fit most vehicles with GM 8.875-inch 12-bolt Car differential, however, vehicles may have other interfering components that may require modifications or moving of existing brackets, require longer cover bolts or different cover bolts, clearance of sway bars, etc. - Checking for adequate clearance and fitment for your application should be verified prior to purchase & installation. Refer to the ID guide and measurement drawings for specifications.
Application Summary:
| Year |
Make/Model |
| 1964-1972 |
Chevrolet Bel Air |
| 1964-1972 |
Chevrolet Biscayne |
| 1967-1972 |
Chevrolet Camaro |
| 1966-1972 |
Chevrolet Caprice |
| 1964-1972 |
Chevrolet Chevelle |
| 1964-1968 |
Chevrolet Chevy II |
| 1964-1972 |
Chevrolet Corvette |
| 1964-1972 |
Chevrolet El Camino |
| 1964-1972 |
Chevrolet Impala |
| 1964-1967 |
Chevrolet Malibu |
| 1970-1972 |
Chevrolet Monte Carlo |
| 1969-1972 |
Chevrolet Nova |
| Attributes |
| Additional Fluid Capacity (qts) |
No |
| Additonal Fluid Capacity (qts) |
No |
| ASIN |
B00LFIT89U |
| Bolt Count |
12, 12 |
| Bolt Pattern |
GM 8.875 in., GM 8.875 |
| Bolt Quantity |
12, 12 |
| Bolt/Studs Included |
Yes |
| Brand |
B&M, B&M |
| Bullet Point #1 |
A356.0-T6 Aluminum Construction |
| Bullet Point #2 |
B&M Logo Engraved |
| Bullet Point #3 |
Load bolts provide additional support to bearing caps |
| Bullet Point #4 |
0.5 quarts extra fluid capacity and cooling/strengthen ribs keeps temperature cooler |
| California Proposition 65 |
Yes |
| Call Out Size (in) |
3.60, 3.6 |
| Carrier Main Cap Support |
Yes, Yes |
| Category |
Driveline and Axles |
| Clearance Category |
Transmission and Drivetrain |
| Color/Finish |
Raw Aluminum, Raw Aluminum |
| Country of Origin (Primary) |
US |
| Drain Plug Included |
Yes, Yes |
| Emission Code |
5, 5 |
| Filler Plug Included |
Yes, Yes |
| Finish |
Raw Aluminum, Cast Aluminum |
| Gasket Included |
No, No |
| Gasket Or Seal Included |
No, No |
| Gaskets Included |
No, No |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708401110 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Long Description |
Cast Aluminum Differential Cover |
| Material |
A356.0-T6 Aluminum, A356.0-T6 Aluminum |
| Mounting Bolt Hole Quantity |
12 |
| Mounting Bolts Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Package Contents |
Aluminum cover, fill & drain plugs, bolts & washers, load bolts & nuts, warranty |
| Part Type |
Differential Cover |
| Position |
N/A |
| Product Type |
Differential Cover, Differential Cover |
| Sale Category |
Transmission and Drivetrain |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| Short Description |
Differential Cover |
| Standard Pack |
1 |
| Studs Included |
Yes, Yes |
| Sub Category |
Differential, Differential |
| Thickness |
3.600 in. |
| Thickness (in) |
3.60, 3.6 |
| Warning |
California Proposition 65, California Proposition 65 |
| GTIN |
00019695705008 |
