Edelbrock Rollin' Thunder Camshaft #2261 is designed for 396-502 V8 Mark IV and Gen V engines from 1967-95 and produce optimum torque from the low-end to the mid-range.

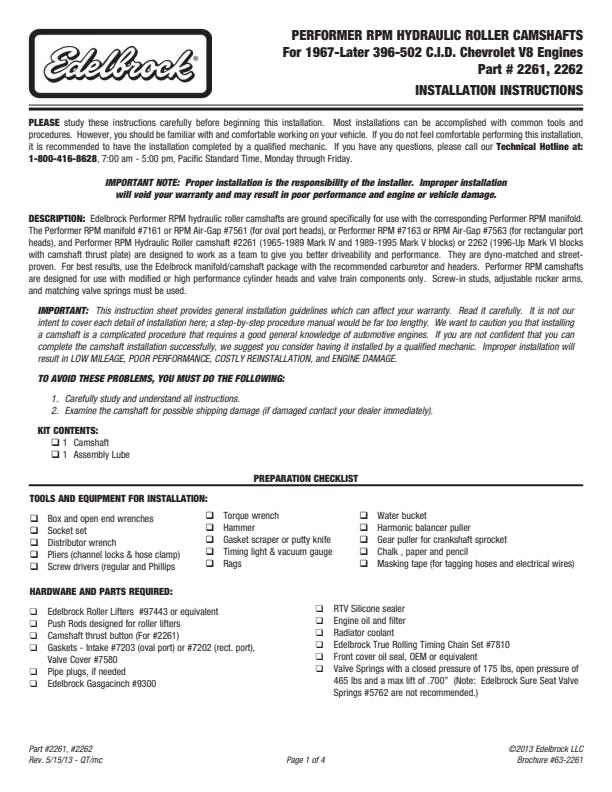

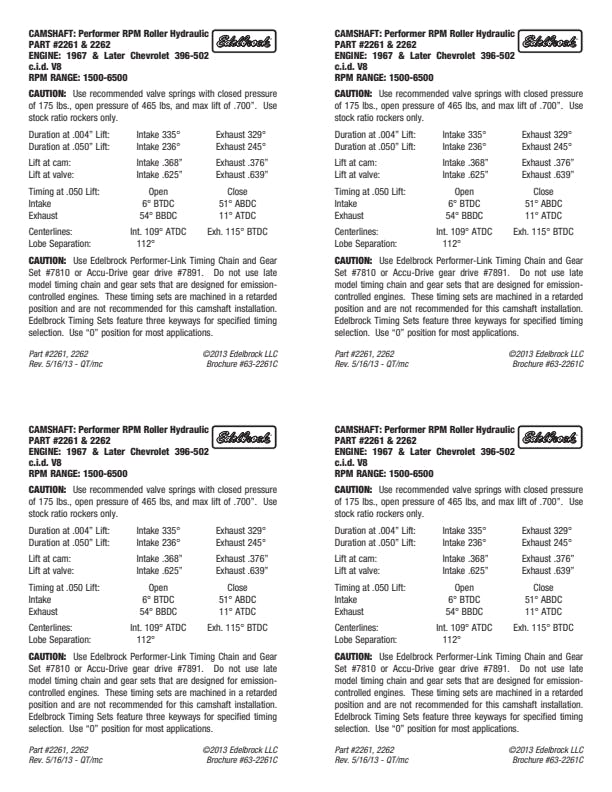

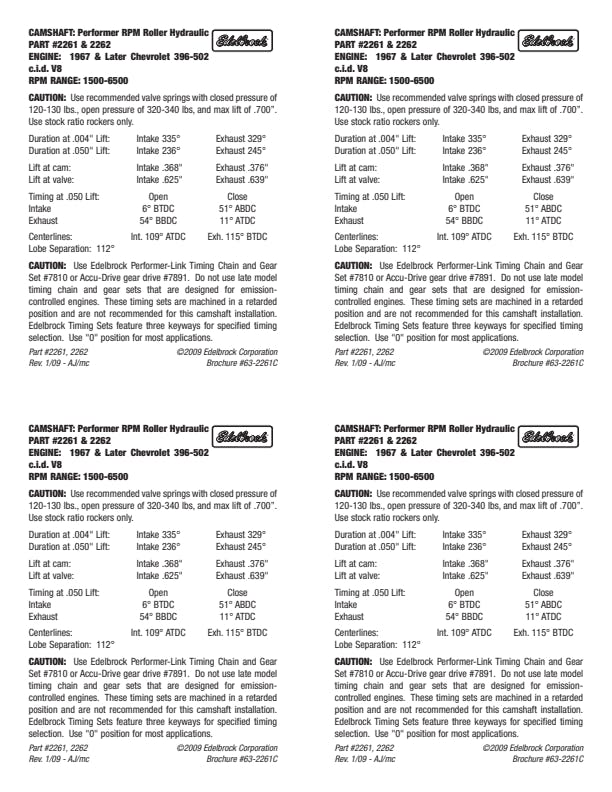

Edelbrock Rollin' Thunder Camshaft #2261 is designed for 396-502 V8 Mark IV and Gen V engines from 1967-95 and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 611HP and 573 Ft Lbs of Torque when paired with Victor Jr. intake manifold #2902 and Victor Jr. 24 Degree cylinder heads #77485 on a GM ZZ-502 short block. Not for 1965-66 Big Block Chevy's running a grooved rear cam journal. Use with a high stall torque converter and stock ratio rocker arms only. Camshaft specifications: - Intake duration: 236 Degrees - Exhaust duration: 245 Degrees - Intake lift: .625" - Exhaust lift: .639" - Lobe separation: 112 Degree - Intake Center Line: 109 Degree - Vacuum: 10"
Edelbrock Rollin' Thunder Camshaft #2261 is designed for 396-502 V8 Mark IV and Gen V engines from 1967-95 and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 611HP and 573 Ft Lbs of Torque when paired with Victor Jr. intake manifold #2902 and Victor Jr. 24 Degree cylinder heads #77485 on a GM ZZ-502 short block. Not for 1965-66 Big Block Chevy's running a grooved rear cam journal. Use with a high stall torque converter and stock ratio rocker arms only. Camshaft specifications: - Intake duration: 236 Degrees - Exhaust duration: 245 Degrees - Intake lift: .625" - Exhaust lift: .639" - Lobe separation: 112 Degree - Intake Center Line: 109 Degree - Vacuum: 10"
Application Summary:
| Year | Make/Model |
|---|---|
| 1967-1975 | Chevrolet Bel Air |
| 1967-1972 | Chevrolet Biscayne |
| 1973-1974 | Chevrolet Blazer |
| 1969-1972 | Chevrolet Brookwood |
| 1975-1980 | Chevrolet C10 |
| 1968-1974 | Chevrolet C10 Pickup |
| 1968-1980 | Chevrolet C10 Suburban |
| 1975-1986 | Chevrolet C20 |
| 1968-1974 | Chevrolet C20 Pickup |
| 1968-1986 | Chevrolet C20 Suburban |
| 1975-1986 | Chevrolet C30 |
| 1968-1974 | Chevrolet C30 Pickup |
| 1967-1972 | Chevrolet Camaro |
| 1967-1976 | Chevrolet Caprice |
| 1969-1973 | Chevrolet Chevelle |
| 1968 | Chevrolet Chevy II |
| 1967-1974 | Chevrolet Corvette |
| 1967-1975 | Chevrolet El Camino |
| 1969-1970 | Chevrolet Estate |
| 1973-1974 | Chevrolet G10 Van |
| 1976 | Chevrolet G20 |
| 1973-1974 | Chevrolet G20 Van |
| 1975-1976 | Chevrolet G30 |
| 1973-1974 | Chevrolet G30 Van |
| 1967-1976 | Chevrolet Impala |
| 1976 | Chevrolet K10 |
| 1980 | Chevrolet K10 |
| 1968-1974 | Chevrolet K10 Pickup |
| 1968-1974 | Chevrolet K10 Suburban |
| 1976-1978 | Chevrolet K20 |
| 1968-1974 | Chevrolet K20 Pickup |
| 1968-1974 | Chevrolet K20 Suburban |
| 1985 | Chevrolet K20 Suburban |
| 1977 | Chevrolet K30 |
| 1980-1986 | Chevrolet K30 |
| 1968-1974 | Chevrolet K30 Pickup |
| 1976-1978 | Chevrolet K5 Blazer |
| 1969-1972 | Chevrolet Kingswood |
| 1970-1975 | Chevrolet Monte Carlo |
| 1969-1972 | Chevrolet Nova |
| 1987-1988 | Chevrolet R30 |
| 1989 | Chevrolet R3500 |
| 1969-1972 | Chevrolet Townsman |
| 1987-1988 | Chevrolet V30 |
| 1989 | Chevrolet V3500 |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1968-1974 | GMC C15/C1500 Pickup |
| 1968-1974 | GMC C15/C1500 Suburban |
| 1979-1980 | GMC C1500 |
| 1979-1980 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
| 1975-1978 | GMC C25 Suburban |
| 1968-1974 | GMC C25/C2500 Pickup |
| 1968-1974 | GMC C25/C2500 Suburban |
| 1979-1986 | GMC C2500 |
| 1979-1986 | GMC C2500 Suburban |
| 1975-1978 | GMC C35 |
| 1968-1974 | GMC C35/C3500 Pickup |
| 1979-1986 | GMC C3500 |
| 1975-1976 | GMC G25 |
| 1976 | GMC G35 |
| 1973-1974 | GMC G35/G3500 Van |
| 1973-1974 | GMC Jimmy |
| 1976 | GMC Jimmy |
| 1976 | GMC K15 |
| 1968-1974 | GMC K15/K1500 Pickup |
| 1968-1974 | GMC K15/K1500 Suburban |
| 1980 | GMC K1500 |
| 1976-1978 | GMC K25 |
| 1976-1977 | GMC K25 Suburban |
| 1968-1974 | GMC K25/K2500 Pickup |
| 1968-1974 | GMC K25/K2500 Suburban |
| Attributes | |
| Advertised Exhaust Duration | 329, 329, 329 |
| Advertised Intake Duration | 335 |
| ASIN | B000CN6WX4 |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Cam Type | Roller, Roller, Roller |
| Computer Controlled Compatible | No, No, No |
| Country of Origin (Primary) | US |
| Emission Code | Not in CA |
| Engine Make/Size | Chevy 454 |
| Exh. Duration @ .050 in. (Deg) | 245 |
| Exh. Duration Advertised (Deg) | 329 |
| Exhaust Duration at .050 inch Lift | 245 |
| Exhaust Valve Lift | 0.376, 0.376 |
| Exhaust Valve Lift (in.) | 0.639 |
| Exhaust Valve Lift with Factory Rocker Arm Ratio | 0.639 |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Hazardous Material Code | N |
| Int. Duration @ .050 in. (Deg) | 236 |
| Int. Duration Advertised (Deg) | 335 |
| Intake Duration @ 0.050 in. | 236 Degree |
| Intake Duration Advertised | 335 |
| Intake Duration at .050 Inch Lift | 236 |
| Intake Valve Lift | 0.368, 0.368 |
| Intake Valve Lift (in.) | 0.625 |
| Intake Valve Lift with Factory Rocker Arm Ratio | 0.625 |
| Life Cycle Status Code | Available to Order |
| Lifter Type | Roller, Roller |
| Lobe Separation | 112, 112, 112 |
| NAFTA Preference Criterion Code | B |
| Potential Risk Chemical | Chrome |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov., WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 1500-6500 |
| SDR Required Flag | N |
| SDS Sheet Number | NA |
| Usage | OEM |
| Warranty Time | 12 |
| GTIN | 00085347022618 |
